Our Products

Conventional Wellhead

B&B Oilfield provides a full range of conventional wellhead equipment that is designed, manufactured and installed in accordance with our API 6A, API Q1 and ISO 9001-2015 quality programs. The B&B Oilfield Conventional Wellhead Product Line is available up to 20,000 psi for onshore & offshore applications. The B&B Conventional Product Line is available for HPHT and critical-service applications.

Our Conventional Wellhead Product Lines include:

Casing Heads

Casing Spools

Tubing Heads

Casing Hangers

Secondary Seals

Chokes

BHTA

Tees/Crosses

Tubing Hangers

Tubing Head Adapters

Misc Crossovers

The BB-ILS Wellhead System has been developed to save rig time, reduce cost and improve safety. The straight bore and latch ring technology allow for more work to be done offline, safer and quicker installations than conventional wellhead. Eliminates time under the rig floor.

Features

Ability to suspend and packoff multiple
casing strings in single wellhead system.
Quick nipple up/down of BOP and/or
Diverter
Ability to rotate mandrel casing hanger
during cementing
Internal Latch Ring design that eliminates
additional leak paths.
Industry proven FS and Dovetail seals.
Ability to run safety through the rig floor.
Less time waiting on cement.
Fully customizable to meet most drilling applications.
Available in 11” and 13 5/8” Systems.
11” Systems available with threaded
bottom connection.
Pressure ratings 5000 psi and 10,000 psi.

Gate Valves

JVM

The JVM Valve is a split gate valve available in 5000 psi ratings and is designed to seal against upstream and downstream simultaneously. The wedging of the two-piece gate assemble achieves the seating force required for complete sealing. The valve is available in most API sizes in both a screwed or flanged connection.

JVC

The JVC Valve is a slab gate valve available in 10,000 psi and 15,000 psi, engineered for performance and reliability. The floating slab-gate of these bi-directional valves creates a positive metal to metal seal at the gate- to seat and seat to body interfaces. The JVC valve incorporates a single seat and seat seals that are pressure energized to prevent foreign materials from flowing past the seat back face. The non-rising stem includes a back seat feature that allows for seal replacement under pressure.

B&B Surface Safety Valve

The B&B Surface Safety Valve is a full –opening,
pressure activated, gate valve designed to close in
the event of a high-pressure or low-pressure event.
It closes completely and quickly as the control
pressure is released. The Surface Safety Valve may
consist of either a Hydraulic or pneumatic actuator
that operates a reverse acting gate. The B&B Surface
Safety Valve can be sized to meet customer
requirements.

The B&B Oilfield Services JVC Valve is also available for SSV, API-6AV1, Class II Service.

BB-FLS-R Frac Valve

The BB-FLS-R is a fully engineered Frac Valve available in 10,000 psi and 15,000 psi rating. The BB-FLS-R Valve has been designed with Frac Fluids in mind. The design has metal to metal sealing between the gate to seat and seat to body. Design provides for the spring loaded, pressure-energized, non-elastomeric lip seals between the seat and body to aid in low pressure sealing and protects the seat pockets from intrusion of particle contaminants.

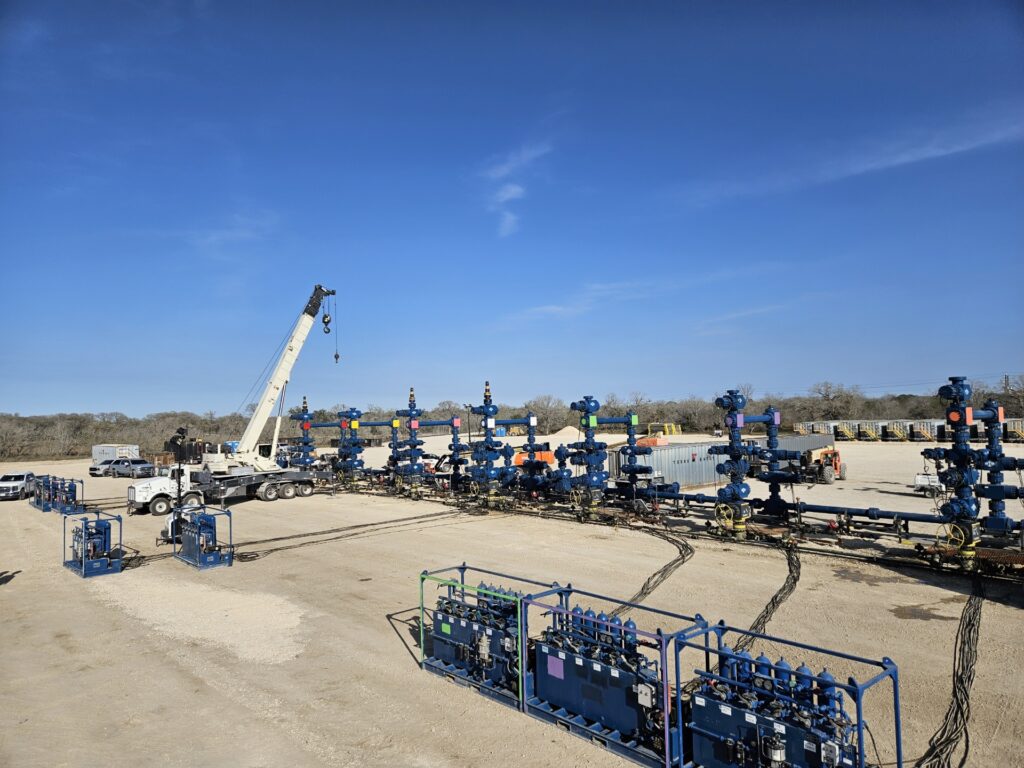

Frac Equipment

B&B Oilfield Services is an API 6A, API Q1, ISO 9001-2015 manufacturer.

We apply the same quality standards to all our Frac Equipment repairs. With in house machining, in house welding, in house Inconel cladding, in house heat treat and stress relieving our quality means less NPT.

Ask us about our performance and valve swap records!

Frac Equipment

Frac Valves 10,000 psi & 15,000 psi
Frac Stacks 10,000 psi & 15,000 psi
Toe Prep Flow Crosses 10,000 psi & 15,000 psi
Zipper Manifolds 10,000 psi & 15,000 psi
Mono-lines 10,000 psi & 15,000 psi
Goatheads 10,000 psi & 15,000 psi
Remote Grease Systems
6 Station Accumulators
Torque & Test Equipment
Spacer Spools
Adjustment Spools
Crosses
Tees

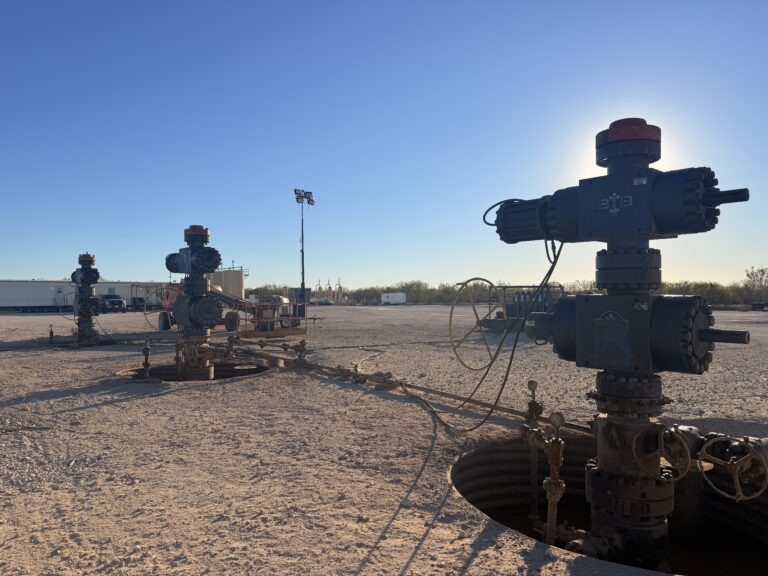

Legacy Wellhead

20+ Acres of Legacy Equipment
In-House Machining (Manual)
In-House Machining (CNC)
In-House Welding/Inconel Cladding
In-House Heat Treating and Stress Relieving
In-House Pressure Testing to 30,000 psi
In-House Nitrogen Testing to PSL-3G
In-House SSV Repairs to API-6AV2
24/7 Engineering Support
Solutions driven
Technical assistance to Customers
Customer Property Management Program
Full electronic history and traceability of assets.
Statistical trends, cost reviews & utilization reports.

All equipment is repaired/remanufactured to the same exacting standards of our API quality program. B&B repairs all OEM API 6A equipment (regardless of manufacturer).

Our history and experience have proven successful to our customers and our company. B&B Oilfield Services, LLC has built a reputation as the place to go for those hard-to-find items.

B&B Oilfield Services considers our Customer Property Management Program as one of our most important offerings. We have invested heavily in this market segment as part of our commitment to reduce our Customers cost.

We can maintain your OEM wellhead equipment and frac equipment to save you critical time and money without sacrificing quality. This includes the full and complete repair of customer owned frac valves.

Our Products

Legacy Wellhead

All equipment is repaired/remanufactured to the same exacting standards of our API quality program. B&B repairs all OEM API 6A equipment (regardless of manufacturer).​

Our history and experience have proven successful to our customers and our company. B&B Oilfield Services, LLC has built a reputation as the place to go for those hard-to-find items. ​

B&B Oilfield Services, LLC maintains one of the largest inventories of remanufactured equipment in the nation!

All equipment is repaired/remanufactured to the same exacting standards of our API quality program. B&B repairs all OEM API 6A equipment (regardless of manufacturer).

Our history and experience have proven successful to our customers and our company. B&B Oilfield Services, LLC has built a reputation as the place to go for those hard-to-find items.
